Introduction

Ready for the Game Engine Revolution in Your Design Workflow

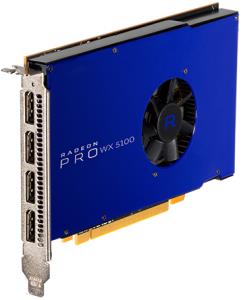

The RadeonT Pro WX 5100 workstation graphics card is designed to be ready for the game engine revolution in professional design workflows. Game engines (such as Unity and Unreal) have become more commonplace in today's immersive computing era, integrating themselves alongside traditional CAD applications like Autodesk®, Siemens PLM and SOLIDWORKS®. Bring your designs to life with the new RadeonT Pro WX 5100, the fastest 75W TDP workstation card in the world.

?Performance Meets Efficiency

Based on the latest Polaris GPU architecture, the Radeon Pro WX 5100 features 28 compute units (1792 stream processors) and 8GB of GDDR5 GPU memory with a 256-bit memory interface. It delivers the power and features to unleash your creativity on applications like Siemens NX, where the Radeon Pro WX 5100 delivers up to 41% more performance than its nearest competitor, the NVIDIA Quadro M2000.2

Quality You Can See

Immerse yourself in the millions of pixels that are being driven from the RadeonT Pro WX 5100 graphics card to your 5K display. See enhanced levels of detail and wider, more precise color ranges with 10-bit color and HDR (High Dynamic Range) support3.

Quality You Can Trust

RadeonT Pro WX graphics cards are the embodiment of innovation and design within the Radeon Technologies Group. Great care is taken into crafting each product to ensure quality and reliability are at the highest of standards. We are proud to stand behind our three year limited warranty (see details at www.amd.com/Warranty) and optional seven year extended limited warranty also available (see details and requirements at www.amd.com/ExtendedWarranty).

Processor

Graphics processor family

AMD

Maximum resolution

5120 x 2880 pixels

Maximum digital resolution

5120 x 2880 pixels

Stream processors

1792

Peak floating point performance (single precision)

3900 Gflops

Memory

Discrete graphics card memory

8 GB

Graphics card memory type

GDDR5

Memory bus

256 bit

Memory bandwidth (max)

160 GB/s

Ports & interfaces

Interface type

PCI Express x16 3.0

DisplayPorts quantity

4

DisplayPort version

1.4

Performance

DirectX version

12.0

OpenGL version

4.5

OpenCL version

2.0

Full HD

Y

Design

Cooling type

Active

Number of fans

1 fan(s)

Number of slots

1

Product colour

Blue

Certification

FCC, CE, C-Tick, BSMI, KCC, UL, VCCL and WEEE Compliance

System requirements

Windows operating systems supported

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64

Linux operating systems supported

Y

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Depth

173 mm
