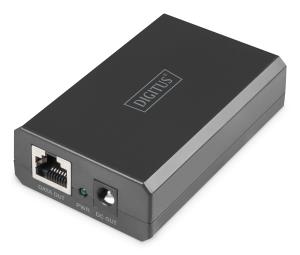

The PoE splitter delivers data and power of up to 51W to devices via a single Ethernet cable.

- Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex
- PoE standard: IEEE802.3at/bt
- Input: Power + data input (RJ45)
- Output: Data output (RJ45), DC output
- Plug-and-play installation - no configuration required
- Selectable output voltages: 12V/4.25A, 24V/2.125A,
- Splits the 48VDC power into different DC outputs via RJ45 Ethernet cable
- Status LED on the device (PoE ready/PoE in operation)
- Protection through insulation of the circuit
- Maximum output power up to 51W

The PoE splitter supplies data and power via a single Ethernet cable to devices that do not support Power over Ethernet. Simply connect the input of the splitter to a PoE switch or PoE injector and the output side to a non-PoE network device such as an access point, IP phone or camera to provide power and data. The extender is self-powered via PoE, so no additional power supply is required. The output voltage can be regulated to 12V or 24V via a dip switch. This splitter extends your network wherever you want to place network devices for which no sockets are available.
