Description

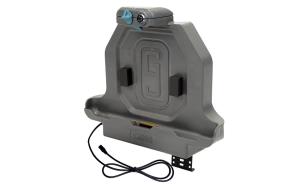

Gamber-Johnson’s Zebra ET51/56 8? SLIM Dual USB docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. Easily connect this docking station to an external power adapter using the MP205 connector on the power cable. Now shipping.

Features:

- Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
- This docking station does not accommodate ET51/56 accessories Front camera on ET5X accessible when the tablet is in the docking station
- Compatible with Windows or Android operating systems
- POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
- 8-40V power input range with power filtering PCB
- Dual powered USB ports; 1.5A for each port to connect peripheral devices
- Access to all control buttons and ports while the tablet is safely docked
- Bottom-facing I/O ports; integrated cable restraint/cable management system
- 40" power cable with MP205 in-line jack to quickly connect to a compatible power adapter
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation: Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages To remove; lift latch to disengage and pull computer out of docking station
- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson's Zirkona mounting products
