The Matrix 300N with 1.3 and 2 Megapixel high resolution sensors, is an ultra-compact image-based barcode reader with outstanding performance and the smallest form factor; the ideal solution for Automotive, Electronics, Intralogistics, Food & Beverage, Packaging, Document Processing and Medical applications.
The Matrix 300N allows an easy and effective focus control for high reading flexibility because of the manual focus adjustment and the Liquid Lens technology for an electronic remote focus control.
The innovative lighting solution with an integrated flexible illumination system makes the Matrix 300N imager perfect for reading barcodes marked with DPM (Direct Part Marking) resulting in optimal illumination on normal, etched, reflective or textured surfaces.

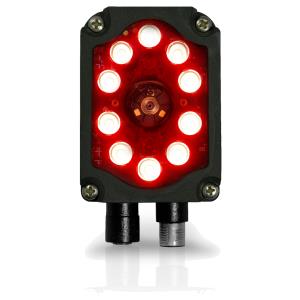

The Matrix 300N 2MP high power 10 LEDs illuminator is suitable for long range reading distances and the multi LED-chain illuminator with diffuser is very effective in barcode reading on flat surfaces with machining flaw.
The polarized illuminator is the ideal solution for reading on reflective or glossy surfaces and allows extreme mounting flexibility since the reader can be mounted 90° to the target surface.
The Continuous High Power Mode (CHPM) lighting option is available on the 2 Megapixel models to eliminate the flickering effect, avoiding any disturbance to the operator when the reader is used in Presentation Mode.
With exceptionally small physical dimensions and a rotating connector, the Matrix 300N can be easily integrated into any tight space.
The Matrix 300N is the most cost-effective solution for barcode imagers, providing Power over Ethernet (PoE) connectivity and onboard PROFINET IO and ETHERNET/IP industrial fieldbuses, eliminating external communication boxes or converters.
The IP65 and IP67 industrial grade rating and the operating temperature range from 0 to 50 ºC / 32 to 122 ºF guarantee the best quality and robustness in the Manufacturing industry applications.
The ESD Safe front cover protects the device from electrostatic discharges while the Anti-YAG cut filter avoids laser reflections in particular for Mark & Read applications.
The Matrix 300N imager guarantees unmatched ease of use and setup thanks to the green and red spot lights, the X-Press button, the intuitive HMI, the aiming-system and the DL.CODE configuration software which has been improved with the Automatic Setup mode for a quick and easy code reading.
With its outstanding performances the Matrix 300N delivers a high performance/price ratio offering in the Datalogic portfolio.
