Introduction

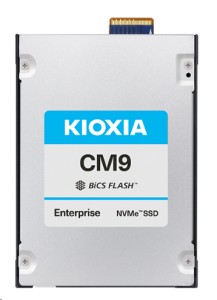

KIOXIA CM9-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads. Built on PCIe® 5.0 and NVMeT 2.0 technology, the CM9 Series SSDs deliver excellent performance up to 3,400K IOPS (random read) and 540K IOPS (random write).

Model Specifications

Internal / External

Internal

Form Factor

E3.S

Form Factor_Width

7.5 mm

Performance Specifications

Average Seek Read

14,500 MB/s

Average Seek Write

3,600 MB/s

Physical Specifications

Formatted Capacity

1.9 TB

SSD

Yes

Shock

Shock operating

9.8 km/s2 { 1,000 G } ( 0.5 ms )

Interfaces/Controllers

PCI Express

PCIe® 5.0 and NVMeT 2.0

Dimensions

Weight

110 g (3.88 ounces)

Miscellaneous

Other Features

Suited for 24x7 enterprise workloads

Special Features

Flash Memory Type : BiCS FLASHT TLC

Green Certificates

Green Compliant

Yes
