Introduction

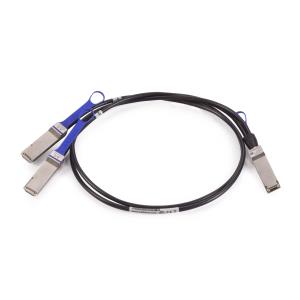

100GbE to 2x50GbE QSFP28 to 2xQSFP28 Direct Attach Copper Splitter Cable
NVIDIA Networking passive splitter breakout cable is a high speed, cost-effective, 100GbE to 2x50GbE, Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.

MCP7H00 cables are compliant with SFF-8665 QSFP28 specifications and provide connectivity between systems using a QSFP28 port one side and two QSFP28 ports on the other. MCP7H00 connects the data signals from each of the 2 dual copper pairs on the single QSFP28 (pairs 1&2, 3&4) end to the dual copper pair of each of the QSFP28 (pair 1&2) ends on the multiport side. Each QSFP28 cage comprises an EEPROM providing product information, which can be read by the host system.

NVIDIA's unique, quality, passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
