Introduction

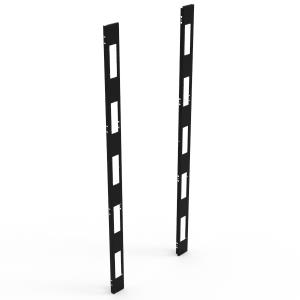

The side-skirt seals the area between the Vertical Mounting Rails and optionally the side plate frame. It is mounted to the Vertical Mounting Rails. This part is only applicable for 800mm wide cabinets. It features 5 rectangular cut-outs for 42U cabinets on each side. The size of the cut-outs is 63mm x 200mm (WxH). These cut-outs enable front to back cable management through the use of brushes (A002Y-080000-000-1) and the front-to-back cable duct (A0037-000001-900-1). An optimal air tight cable throughput is also available (A004C-000001-900-1). Optionally cover plates maybe used as well when cable entry is not required.
